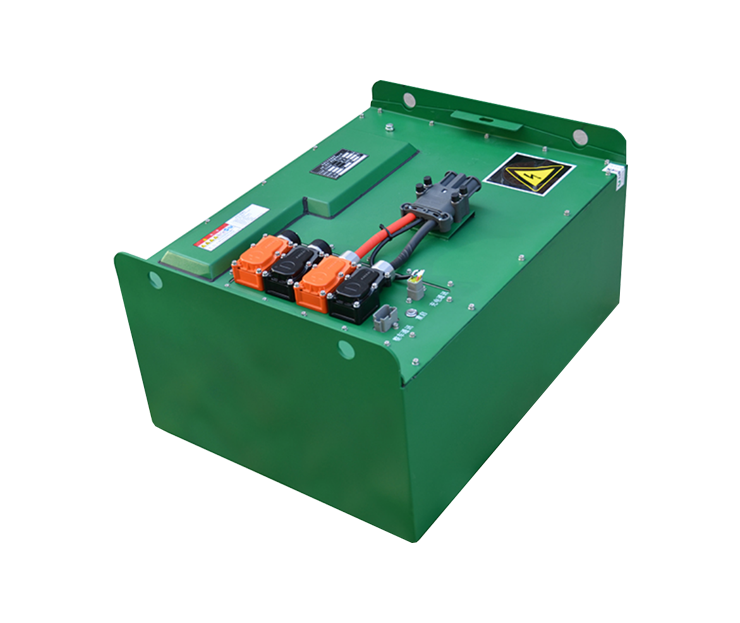

Forklift electronic scale battery

HZT4802WF

Battery type: soft pack polymer

Battery size: 780mmx495mmx440mm

Rated voltage: 48V

Rated capacity: 400Ah

Power: 19200Wh


Contact us
Forklift electronic scale battery parameter data
modelHZT4802WF
Battery TypeSoft bag polymer
Battery size780mmx495mmx440mm
Rated voltage48V
Rated Capacity400Ah
power19200Wh
Cycle lifeAfter 500 times of continuous charging and discharging, the battery capacity is not less than 80%.
Discharge cut-off voltage39V
Charging cut-off voltage55.2±0.1V
Standard discharge current1C
Standard charging current1C
Maximum continuous discharge current2C
Maximum charging current1C
Operating temperatureCharge 0~50℃, discharge -20~60℃
Storage temperatureTemperature -20~60℃, humidity 60±25%
CertificationPassed ISO9001 quality system certification, UL, UN, CE, RoHS, REACH and other certifications.
WarrantyDecember


Product Features:
1. Customized size: model and capacity are available
2. Quality assurance: UL1642 testing standards are adopted, and the products have passed 100% material testing and equipment testing.
3. Stable performance: Long cycle life: After 500 times of continuous charging and discharging, the battery capacity is not less than 80% of the rated capacity.
4. High safety: The built-in circuit protection board has the characteristics of no fire or explosion under short circuit, overcharge, over discharge, impact, vibration, acupuncture, high temperature and other conditions. Our 18650 batteries all have explosion-proof valves, and the polymer battery cells all use colloidal electricity, which will only bulge at most and will not explode. In addition, our company has a strict quality inspection process to ensure product safety and quality.
